Stainless ESS Thermal Cycling Chamber Fan Overheat Anti - Dry Rapid Rate

Dongguan MENTEK Testing Equipment Co.,Ltd

Stainless ESS Thermal Cycling Chamber Fan Overheat Anti - Dry Rapid Rate

  • 1
  • 2

Brand Name : MENTEK

Model Number : MESS

Certification : CE

Place of Origin : China

MOQ : 1Unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 25-35 working days after order confirmed

Packaging Details : First protected by resin fiber and PP film, then put into Strong wooden case

Temp Range : -70°C~+150°C , -40°C~+150°C

Ramp Rate : 15°C/min

Temp Change rate(with load) : 5°C~20°C/m(standard), 30°C/m(liquid netrogen)

Interior Material : SUS 304

Temp Fluctuation : ±0.3°C~±0.5°C

Safety Documentations : Electric leakage, fan overheat, anti-dry, compressor overheat&overpressure, power supply undercurrent, overheat, overcurrent, phase sequence, over-temperature

Warranty : 12 Months

Power : Electronic

Material : Stainless steel

Contact Now

Stainless ESS Thermal Cycling Chamber , Rapid rate , Quality Certification

ESS Thermal Cycling Chamber, full name Environmental Stress Screening Thermal Cycling Chamber, are available From 5 to 20°C/min Rapid-Rate Temperature Change. It can be used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction causedby chemical change or physical harm.



Stainless ESS Thermal Cycling Chamber Fan Overheat Anti - Dry Rapid Rate




Application

ESS Thermal Cycling Test Chamber is widely used in following industry and it can be used as an important reference for improving product quality.

  • Electronic parts
  • Home appliance
  • Auto parts
  • Aviation parts
  • Metal
  • Plastic,rubber



Technical Sheet

ModelMESS-250MESS-500MESS-1000MESS-1500Custom
Interior Volume250L500L1000L800LAccept
Interior Dimension(cm)70*70H*5080*90H*70100*100H*100100*150H*100
Standard Load(Aluminum Ingots)5kg12kg25kg30kg
Temp Change Rate(with load)5℃ ~20℃/m(Standard); 30/℃/m( Liquid Netrogen)
Temp Range-70℃~+150℃-40℃~+150℃
Temp Fluctuation±0.3℃~±0.5℃
Temp & Humidity Deviation±1℃~±2℃±3%RH(>75%RH);±5%RH(≤75%RH) (optional)
Standard configurations1 Window, 1 Cable port, 1 Lamp, 4 Casters, 1 Power cable, 2 Stainless steel shelves
Standard Documentationsquality certification,test report ,user operaion manual for machine & controller
Safety devicesElectric leakage, fan overheat ,anti-dry ,compressor overheat & overpressure,power supply undercurrent,overheat, overcurrent, phase sequence, over-temperature protection devices


Why MENTEK?




  • 1) Highly flexible for customization: The biggest advantage with MTENK climatic chambers is that they are highly flexible for customization. Every test follows a set of procedures as per the defined test standards (ASTM, IEC, MIL, etc.) and sometimes a standard climatic chamber might not be sufficient to conduct a particular test. Our engineers understand this need of the industry well and offer the highest level of customisation like design modification or integration with other applications such as Climatic Chamber with alititude integration, Climatic Chamber with Vibration Integration(AGREE Chamber), etc.



  • 2) Professionalism: China Leading brand climatic chamber manufacturer with over 20 years focus on environmental test chambers Industry since 1999. MENTEK Testing Equipment Co.,Ltd is a leading climatic chamber manufacturer in China, specializing in manufacturing various environmental chambers with superior quality and customer service.We have professional factory management and development team. The yearly turnout are 1,500 units.We are customer-tailored solution expert in environmental chamber, provide excellent test chambers & make expert solutions for customers.We provide private custom service for each customer, and create their own brand environment test chambers.



  • 3) Fast Delivery: The products delivered to you within 7 days for our stock items from clearance of payment. It will take 25-to-35 working days for custom made products or equipments that are not available from stock.





We Supply you



  • Climatic Chamber
  • Environmental Chamber
  • Temperature Chamber
  • Humidity Chamber
  • Walk-in Chamber
  • Thermal Shock Chamber
  • Thermal Cycling Chamber
  • Lab Oven
  • Vacuum Chamber
  • Vibration Shaker
  • Altitude Chamber
  • Salt Spray Tester
  • Tensile Test Machine
  • Custom-designed Test Chamber



Looking for distributors worldwild.


We have been looking for qualified overseas distributors or dealers to join our business together, and sincerely invite you to visit our company and factory in Dongguan, China. If you are interested in business for environmental chambers and have ability to install, repair test chambers with your professional technician support, please do not hesitate to contact us and join our sales team to establish friendly business relationship based on mutual benefits.

























Product Tags:

thermal cycling equipment



thermal cycling machine


Buy cheap Stainless ESS Thermal Cycling Chamber Fan Overheat Anti - Dry Rapid Rate product

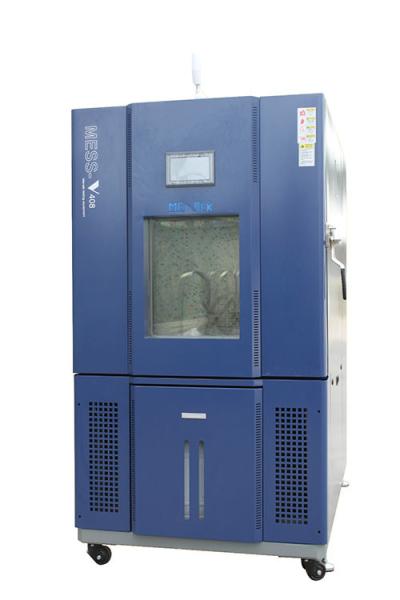

Stainless ESS Thermal Cycling Chamber Fan Overheat Anti - Dry Rapid Rate Images
